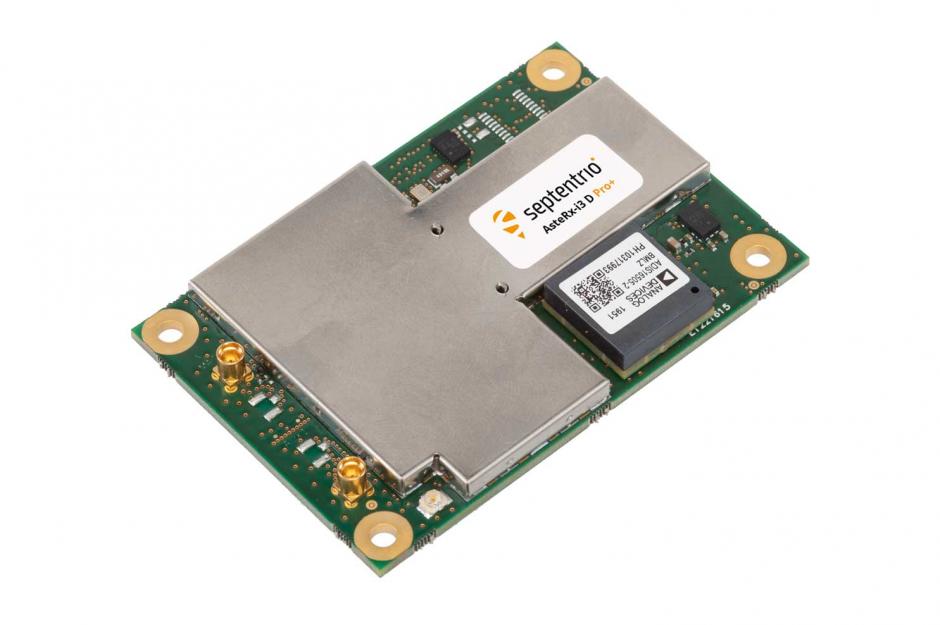

AsteRx-i3 D Pro+

GNSS/INS including sensor fusion and dual antenna option for integrated solutions

AsteRx-i3 D Pro+ delivers reliable centimeter level positioning combined with 3D orientation in demanding environments. Its onboard inertial sensor provides heading, pitch and roll angles and enables positional dead-reckoning, making it ideal for systems that require continuous positioning even during short GNSS outages. AsteRx-i3 D Pro+ is the most flexible GNSS/INS solution offering full access to raw GNSS and INS data and allowing multiple antenna configurations.

Key Features

Reliable and accurate IMU-enhanced GNSS positioning down to the centimeter level
Full access to raw GNSS and IMU data
Single or dual GNSS antenna with heading, pitch and roll
Lightweight, low power and compact
AIM+ unique?interference?monitoring and?mitigation?system +?advanced other GNSS+ algorithms
Quad-constellation, multi-frequency, all-in-view RTK positioning

Get to know our GNSS+INS receiver OEM board

GNSS/INS ideal for any integration

The AsteRx-i3 D Pro+ is not only delivering an already integrated position, but it also provides raw GNSS and IMU data, already synchronized and in a single data stream for customers that will integrate those components with other sensors for a larger data fusion system (i.e. lidar). Having GNSS and IMU hardware already integrated and data streams already synchronized enables users to focus on their own core technology without having to integrate GNSS and IMU sensors themselves.

Dead reckoning with GNSS/INS

The GNSS+ Technologies - Top performance in challenging environments

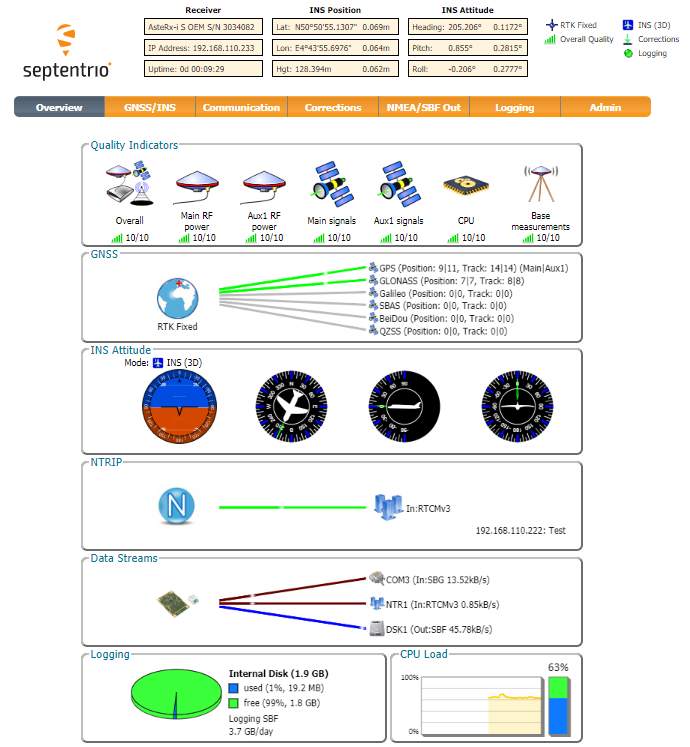

Intuitive web user interface

This receiver includes an intuitive web user interface for easy operation and monitoring ?allowing ?you to control the?receiver from any mobile device or computer. The web interface also uses easy-to-read quality indicators ideal to monitor the receiver operation during?the job at hand.
