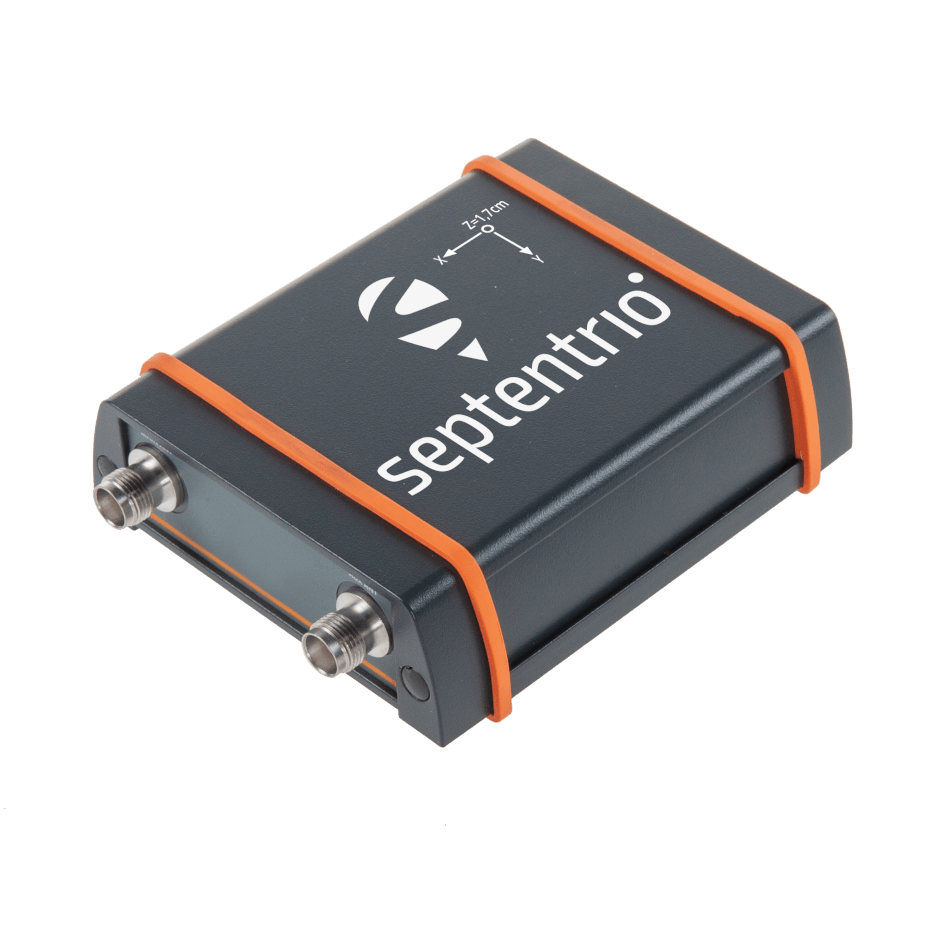

AsteRx SBi3 Pro GNSS/INS multi-frequency receiver delivers reliable centimeter level positioning together with 3D orientation in challenging environments. Thanks to the built-in inertial sensor, it provides orientation (heading, pitch and roll) as well as dead reckoning, making it a perfect solution for systems that require positioning under any condition. This housed high-performance GNSS/INS system is ideal for rapid integration into machine control or ground robotic applications.
Key Features
Accurate and reliable IMU-enhanced GNSS positioning down to centimeter level
Quad-constellation, multi-frequency, all-in-view RTK positioning
Single antenna GNSS/INS with heading, pitch and roll
Robust and compact IP68 weatherproof housing
AIM+ unique?interference?monitoring and?mitigation?system +?advanced other GNSS+ algorithms
Septentrio’s renowned multi-constellation, multi-frequency RTK is further enhanced by a powerful GNSS/INS integration that allows to have accurate heading, pitch and roll using a single antenna for the most efficient and lean integration. The integrated positioning + orientation solution of AsteRx SBi3 Pro streams out into several wired connectors. With clear marking of the inertial reference point together with a sturdy mounting connector, it is an ideal system for those who are looking for an intuitive GNSS/INS, ready for production.

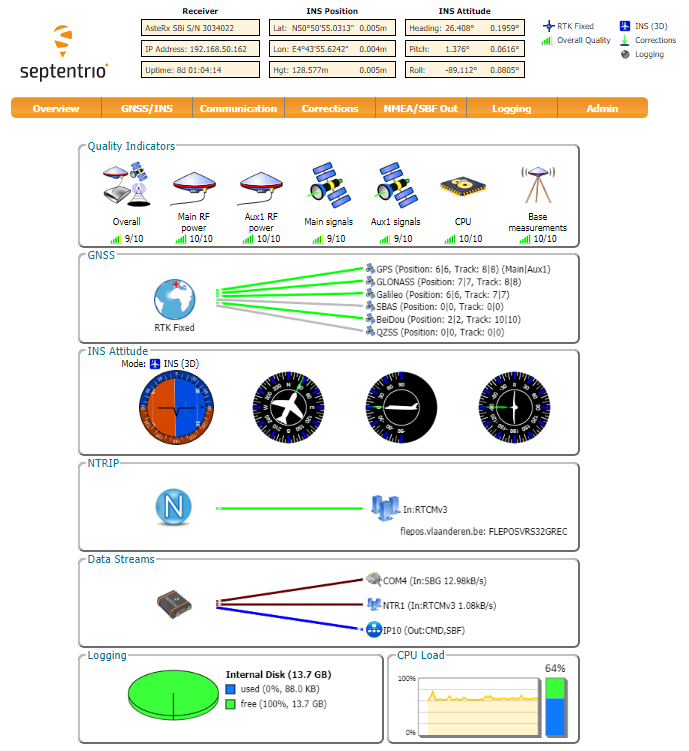

This receiver includes an intuitive web user interface for easy operation and monitoring?allowing?you to control the?receiver from any mobile device or computer. The web interface also uses easy-to-read quality indicators ideal to monitor the receiver operation during?the job at hand.
